Digital Leaf Sensor Meter
Item Details
Digital Leaf Sensor Meter
Item Name:
Digital Leaf Sensor Meter
Item #:
AH-300-Meter
Price/ea:
$79.99
$71.99 (Buy 5 or more and SAVE!)
Average Rating:

Digital Leaf Sensor Meter

New  - Measures water levels of live plants for  agronomists, aeroponics, hydroponics and drip irrigation systems when used with AgriHouse's Leaf Sensor (sold separately).

Easy to Use: Simply affix the Leaf Sensor to a healthy plant leaf and begin monitoring the indirect measurement of leaf turgidity (moisture level) using our special 4-digit display voltmeter. External battery/power not required.

Applications (partial list):  Earth & Plant Sciences / Irrigation Control / Water Management / Weather Stations / Research / Education / Agronomists / Consultants



Includes:

  • 1 ea. Digtail Voltmeter
  • 3- wire connector (ground,  3 vdc, signal)
  • Instruction CD-ROM

Digital Voltmeter Specifications

  •  Size:  5.78”L  x  3.78”W x 1.78”H
  • Weight:  7.8 oz
  • Analog Output range: 1.45 to 3 vdc
  • Input voltage (vdc): 3.0 vdc
  • Source Current: 1.5 mA
  • Signal Resolution:   0.001 vdc
  • Temperature Range:  > 32F to 120F
  • 3-Conductor Micro-Wire (w/ connector) Length: 5inches

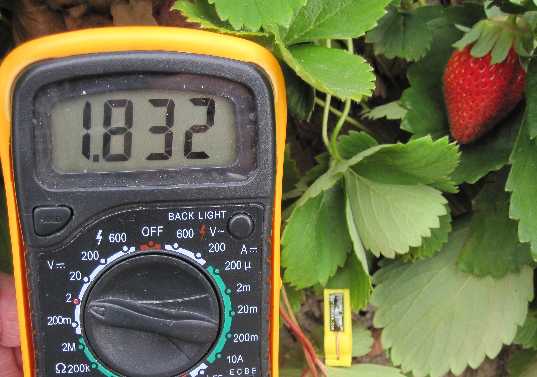

       ·     Connects to leaf sensor as shown below (sold separately)

Optional Equipment from AgriHouse

Price/ea: $79.99

Quantity:

Related Items
SG-1000 Leaf Sensor
AH-300A
The original SG-1000 leaf sensor, the forerunner to the current model, the Leaf Sensor Rev3 for precision irrigation control and monitoring.

Leaf Sensor Manuals and Tips - download
AH-303D
Leaf Sensor manuals and tips for soldering and connecting sensors to digital multimeters and data loggers. Includes irrigation sensor articles, manuals, hints and more for best practices. Ready for download.
$39.96  $29.99

Leaf Sensor Calibration Standards Card
AH-300C
Calibration Stardard Card for calibration the Leaf Sensors -contains 1 ea. graduated calibrated micro-thin disks. Track voltage / inches (mm).
$69.99

Leaf Sensor  - The How to Use page
AH-300u
How to use the Leaf Sensor Rev3 for all plants. Know when to water. Easy to use. Measures water levels using a digital multimeter or data logger. Precision Irrigation Monitor when used with these devices. Click to BUY.
$289.99

Leaf Sensor Rev3 w/connector, cable and software CD-ROM
AH-300
AgriHouse's NASA sponsored Leaf Sensor Rev3 for all plants. It knows when to water. Water resistant low power device. Easy to use. Measures plant water levels using a digital multimeter or data logger for precision irrigation control.
$289.99

Digital Leaf Sensor Meter for leaf sensor voltage readings - no external battery required. Special cable connects directly to a leaf sensor. Ready use. Take leaf sensor readings -  connector/cable included.
