Leaf Sensor Rev4, Data Logger DAQ & Software Package
Item Details
Leaf Sensor Rev4, Data Logger DAQ & Software Package
Item Name:
Leaf Sensor Rev4, Data Logger DAQ & Software Package
Item #:
$5,299.99  $4,499.99
Average Rating:


Let any plant control when it really needs the water!

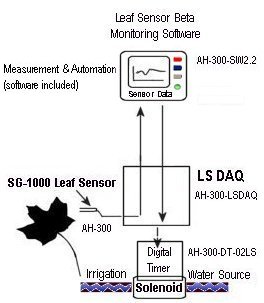

LS-DAQ Interface for real-time leaf sensor measurement and control for aeroponics, hydroponics and drip irrigation. This complete package includes leaf sensors, calibration standards, a precision data logger (DAQ 14-bit), drivers and  precision monitoring software for solenoid latching.

               Leaf Sensor (DAQ) Interface

see Leaf Sensor Video

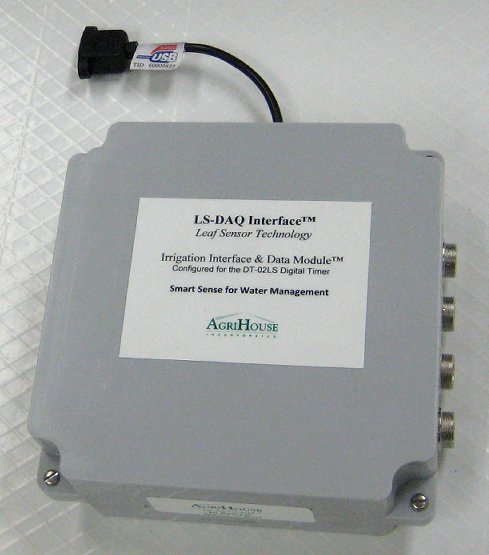

   * 1 ea. LS-DAQ Data Logger Interface

    •  four Leaf Sensor Inputs (3-5 vdc)
    •  four Digital Outputs (5 vdc)

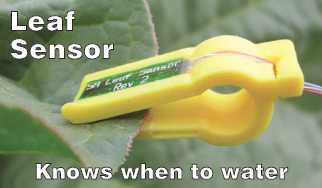

   * 4 ea. Leaf Sensors Rev34 w/12' cables

   * USB cable (12 ft.)

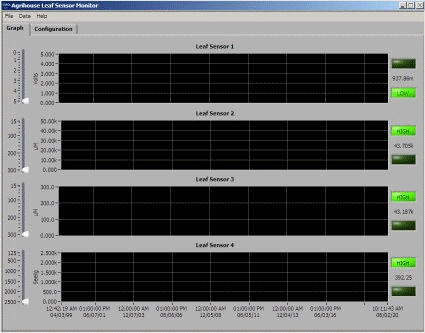

   * Leaf Sensor Monitoring & Control Software v2.2 (DVD)

   * Leaf Sensor Analysis Software v1.4

   * NI Measurement & Autmation Software

   * Manual CD-rom


    • Size: 2.5”L x 6”H x 7.25”W
    • Weight: 2 lbs
    • Resolution: 14-bit
    • Signal Conditioning
    • Absolute Accuracy (no load): 36.4mV maximum Full Scale
    • No. Leaf Sensor Inputs (w/ connector/cables): 4 ea.
    • No. Digital Outputs: 8 ea.
    • Output Voltage: 0-5 VDC
    • PC compatible - Win8, Win7, WinXP or Win2000
    • Available Digital Outputs per Leaf Sensor: 1 ea

Irrigation Hardware (optional - order separately)

For more info visit & Leaf Sensor Blog

Related Items
Leaf Sensor Rev4 w/connector, cable and software CD-ROM
AgriHouse's NASA sponsored Leaf Sensor Rev4 for all plants. It knows when to water. Easy to use. Measures plant water levels using a digital multimeter or data logger. New v4 sensor upgrades.
$329.99  $289.99

Precision Leaf Sensor Rev4 Data Acquisition Interface (analog-digital conversion) of leaf moisture. Extended irrigation control for soil, aeroponics, hydroponics and drip. Includes 4 ea. leaf sensors, calibr., cables, connectors, DAQ & control software.
