Leaf Sensor Rev4 - Digital Meter - Calibration Card   Combo Pak
Item Details

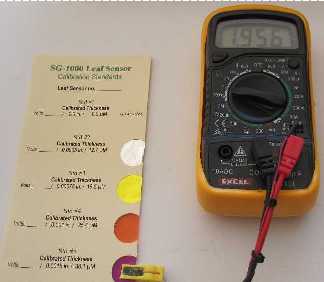

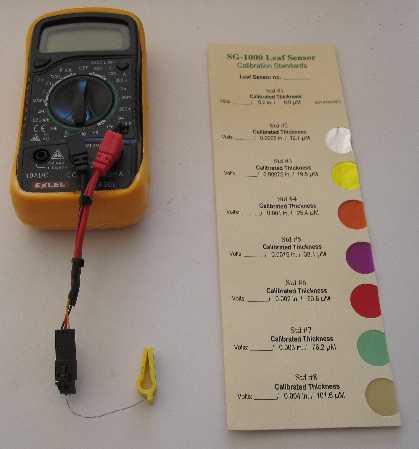

Leaf Sensor Rev4 - Digital Meter - Calibration Card   Combo Pak
Item Name:
Leaf Sensor Rev4 - Digital Meter - Calibration Card Combo Pak
Item #:
AH-302
Price/ea:
$489.99  $469.99
Average Rating:

Leaf Sensor - Digital Meter - Calibration Card Combo Pak

New  - Measures water levels of live plants for  agronomists, aeroponics, hydroponics and drip irrigation systems when used with AgriHouse's Leaf Sensor - Digital Meter and Calibration Standards Card.

Easy to Use: Simply affix the Leaf Sensor to a healthy plant leaf and begin monitoring the indirect measurement of leaf turgidity (moisture level) using our special 4-digit display voltmeter. External battery/power not required.

Applications (partial list):  Earth & Plant Sciences / Irrigation Control / Water Management / Weather Stations / Research / Education / Agronomists / Consultants

Benefits:  Measure leaf moisture levels (leaf thickness) and sap flow in real time - know when to water!

Includes:

  • 1 ea. Digtail Voltmeter
  • 1 ea. Leaf Sensor Rev4
  • 1 ea. Calibration Std card
  • 3- wire connector (ground,  3 vdc, signal)
  • Instruction CD-ROM

Digital Voltmeter Specifications

  •  Size:  5.78”L  x  3.78”W x 1.78”H
  • Weight:  7.8 oz
  • Analog Output range: 1.45 to 3 vdc
  • Input voltage (vdc): 3.0 vdc
  • Source Current: 1.5 mA
  • Signal Resolution:   0.001 vdc
  • Temperature Range:  > 32F to 120F
  • 3-Conductor Micro-Wire (w/ connector) Length: 5inches

        ·     1 ea.  Leaf sensor as shown see  Leaf Sensor Rev3

Optional Equipment from AgriHouse

Price/ea: $469.99

Quantity:


Related Items
Leaf Sensor Calibration Standards Card
AH-300C
Calibration Standard Card for calibration the Leaf Sensors -contains 1 ea. graduated calibrated micro-thin disks. Track voltage / inches (mm). For use with all AgriHouse Leaf Sensors.
$89.99  $79.99

Leaf Sensor Rev4 w/clip      NEW for 2022
AH-303
Leaf Sensor Rev4 w/clip 3-wire connection. GREAT price! It knows when to water. Wire insert into 3-wire connection. Precision Irrigation Monitor. Hurry while supplies last.
$159.99  $129.99

Leaf Sensor Rev4 & Cable Combo     NEW v4 upgrades for 2022
AH-300u
How to use the Leaf Sensor for all plants. Know when to water. Easy to use. Measures water levels using a digital multimeter or Arduino data logger. Precision Irrigation Monitor when used with these devices. NEW v4 upgrades includes 10' connector cable.
$229.99  $189.99

Leaf Sensor Rev4 Monitoring & Control Software
AH-300-SW2.2
Leaf Sensor Rev4 Analysis and Control Software v2.2 DVD. Configurable real-time data analysis for leaf water/ moisture measurement. Measure accurately in volts and micrometers. Software package.
$1,299.99  $989.99

Leaf Sensor Rev4 and Wireless Device Cloud Package
AH-300w2
Leaf Sensor Rev4 Wireless Device Cloud package. Wireless data to the cloud - leaf sensor turgidity & soil moisture readings. Solar powered ready to use. Includes Leaf Sensor, soil moisture probe, Base Station, Remote Node and 1-year free Device Cloud.
$1,739.95  $1,459.95

Leaf Sensor Rev4 - Digital Meter - Calibration Combo pak II for leaf sensor voltage readings - no external battery required. Special cable connects directly to a leaf sensor - includes Leaf Sensor REv4, Digital Meter, Calibration std card and cable
