Leaf Sensor Rev4 & Cable Combo     NEW v4 upgrades for 2022
Item Details
Leaf Sensor Rev4 & Cable Combo     NEW v4 upgrades for 2022
Item Name:
Leaf Sensor Rev4 & Cable Combo NEW v4 upgrades for 2022
Item #:
AH-300u
Price/ea:
$229.99  $189.99
$170.99 (Buy 5 or more and SAVE!)
Average Rating:

Leaf Sensor Rev4  New Upgrade for 2022!    Sensor & Cable combo

New Improved - Calibrated real-time leaf sensor that measures water levels of live plants for aeroponics, hydroponics and drip irrigation systems.

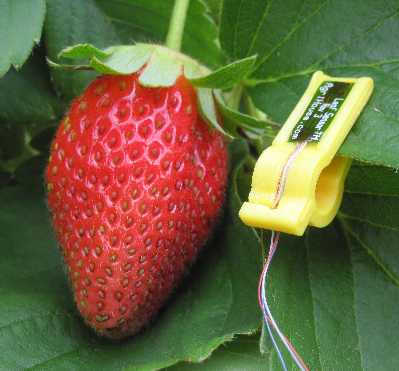

Easy to Use: Simply affix the Leaf Sensor to a healthy plant leaf and begin monitoring the indirect measurement of leaf turgidity (moisture level) using a standard 4-digit display multimeter and external battery (not included).

Applications (partial list):  Plant Sciences / Irrigation Control / Water Management / Weather Stations / Research / Education /Agronomy Consultants

Benefits:  Measure leaf moisture levels (leaf thickness) and sap flow in real time - know when to water!

  How to use

Affixed sensor to a  leaf.  Leaf sensor signal readings (volts) are taken with a digital multimeter or a data  logger device.  As the voltage measurement increases the plant's need for water increases.  Watering lowers the signal reading to a steady state (water not needed).





Leaf Sensor Interfacing Hardware & Equipment - Options

Lots of ways to connect! Get start today!

 Leaf Sensor DIgital Meter


 Ready to Use - BUY
 includes:
      *  cable
      *  connector

      *  CD-rom

External battery not required

* Field, Benchtop & Lab Software & Controllers







    * Data Logger Compatible  (listed here)

  • Omega Data Loggers
  • National Instruments (Labview for NI USB-6000)
  • Campbell Scientific  (LoggerNet Code for CR-1000)















    *  Open Source Compatibility  (example and code shown below)


  • Ardriuno USB to PC
  • code example sketch_leafsensor.txt













Ardiuno MKR 1000

Data logger Board

AH-350   New for 2020

Features:

* Open source code

* (3 ea.) Leaf sensor precision excite voltage

* WiFi to Google Drive Spreadshets

* (2 ea.)  i/o Input/Output



   Arduino Datalogger board

         Just insert your Ardunio MKR 1000

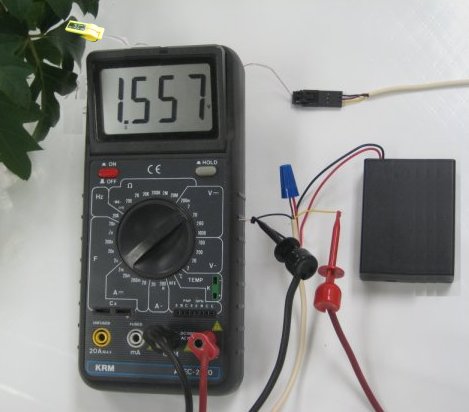

Multimeter Compatible  (external battery example shown below)






    Set up:
      * Red +, Black -, Yellow signal
      * Highest reading: not affixed
      * Lowest reading: stop watering
      * Track changes



Lots of ways to connect! Get start today!

Leaf Sensor™ Rev3 includes:
    • 1 ea. Leaf Sensor
    • 3- wire connector (male)
    • 1 ea - 10ft Cable Connector (female)
    • Software rev3 & Instructions CD-ROM
    • Free Technical Support
    • 1-year Limited Warranty

























Specifications

    •  Size:  1”L x 1/4”H x 3/8”W
    • Weight:  0.55 grams
    • Analog Output range: 1.45vdc to 2.0vdc @ 3.0vdc / 5 vdc input
    • Input voltage (vdc):  3.0 (min), 3.3 (typical), 5 (max)
    • Source Current: 1.5 mA
    • Signal Resolution (16-bit):  > 0.00001vdc
    • Temperature Range:  > 32F to 120F
    • Water resistant (indoor & outdoor use)
    • Self-calibrating
    • Reference

Price/ea:

$189.99

$179.99  (Buy 5 or more and save BIG)

Quantity:


Related Items
Digital Leaf Sensor Meter
AH-300-Meter
Digital Leaf Sensor Meter for leaf sensor voltage readings - no external battery required. Special cable connects directly to a leaf sensor. Ready use. Take leaf sensor readings - connector/cable included.
$79.99

Leaf Sensor Calibration Standards Card
AH-300C
Calibration Standard Card for calibration the Leaf Sensors -contains 1 ea. graduated calibrated micro-thin disks. Track voltage / inches (mm). For use with all AgriHouse Leaf Sensors.
$89.99  $79.99

Leaf Sensor Rev4 w/clip   NEW for 2022
AH-304
Leaf Sensor Rev4 w/clip 3-wire connection. GREAT price! It knows when to water. Wire insert into 3-wire connection. Precision Irrigation Monitor. Hurry while supplies last.
$159.99  $129.99

 Arduino - Data logger Board  NEW!
AH-350
Arduino MKR 1000 Leaf Sensor WiFi DataLogger - transmission of up to 3 ea to Google Device Drive Spreadsheets. Ready use with AgriHouse's patented Leaf Sensor. Open source code for Arduino MKR 1000 included.
$239.99

Leaf Sensor Rev4 - Digital Meter - Calibration Card   Combo Pak
AH-302
Leaf Sensor Rev4 - Digital Meter - Calibration Combo pak II for leaf sensor voltage readings - no external battery required. Special cable connects directly to a leaf sensor - includes Leaf Sensor Rev4, CD, Digital Meter, Calibration std card and cable
$499.99  $484.99

Wearable plant Leaf Sensor for all plants. Know when to water.  Easy to use. Measures water levels using a digital multimeter or Arduino data logger. Precision Irrigation Monitor when used with these devices. NEW v4 upgrades includes 10' connector cable.
